Drill Collar: Critical Weight Component in Oilfield and Borewell Drilling
In both oilfield drilling and deep borewell operations, maintaining weight on the bit and controlling deviation are key to success. This is where the drill collar becomes a fundamental component of the drill string. Designed to apply weight and improve stability, the drill collar plays a vital role in drilling efficiency and wellbore integrity.
This blog explains the definition, types, applications, and advantages of using drill collars, along with key selection parameters.
? Focus Keyword: Drill Collar
? LSI Keywords: Drill string component, Oilfield collar
? What is a Drill Collar?
A drill collar is a thick-walled tubular pipe made from solid steel or non-magnetic material, installed just above the drill bit in a drill string. Its primary purpose is to apply weight on the bit (WOB) and maintain wellbore stability by reducing drill pipe buckling.
Drill collars add the necessary rigidity to ensure the drill bit cuts efficiently into the formation.
?? Key Features of Drill Collars
- ?? High Tensile Strength – Forged from alloy steel or non-magnetic steel
- ?? Precision Machining – Ground to tight tolerances for straightness
- ? API Threaded Ends – Compatible with standard drill pipe connections
- ? Slick or Spiral-Grooved Designs – Spiral grooves reduce differential sticking
- ? Non-Magnetic Options – Required for directional drilling with MWD tools

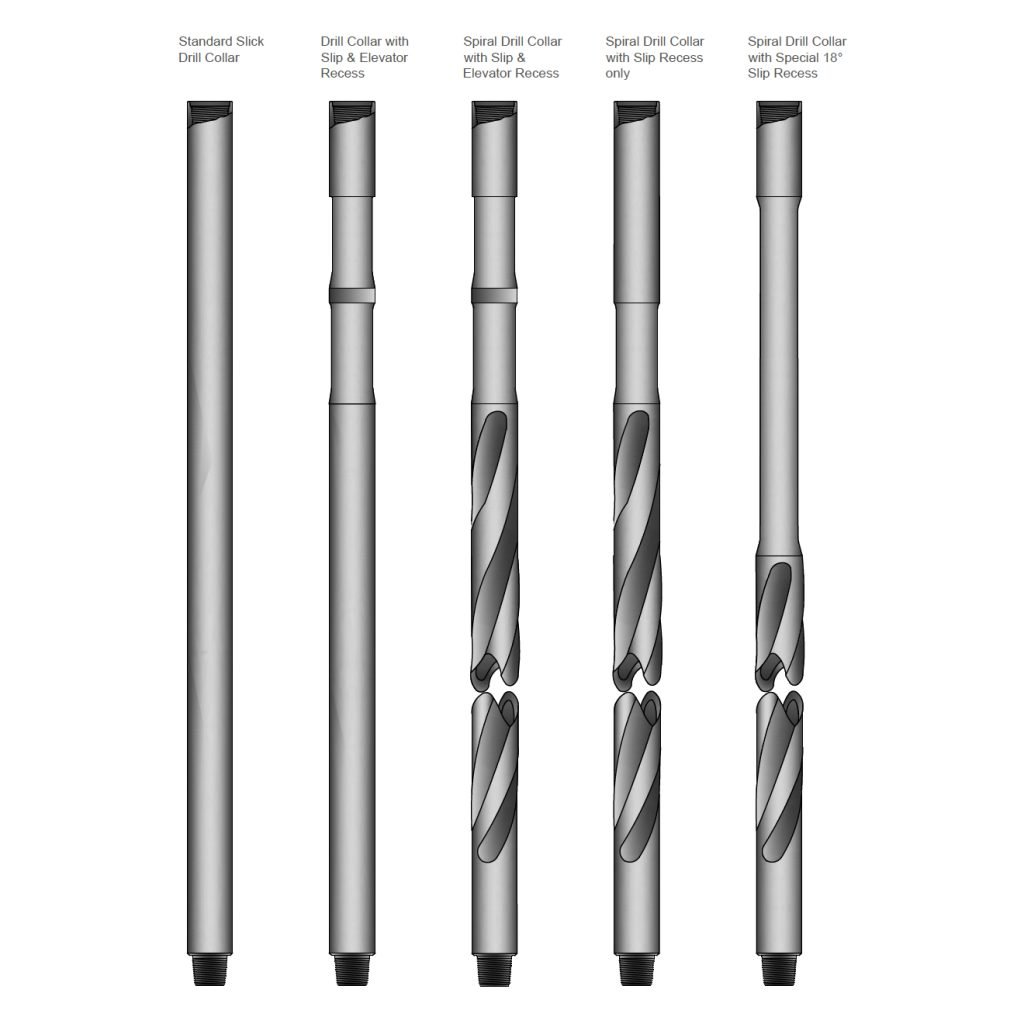

? Types of Drill Collars
1. Slick Drill Collars
- Smooth outer surface
- Ideal for vertical wells and basic applications
2. Spiral Drill Collars
- Grooved exterior to reduce surface contact
- Minimizes differential sticking and drag
3. Non-Magnetic Drill Collars
- Made from stainless steel alloys
- Used in directional and measurement-while-drilling (MWD) setups
?? Applications of Drill Collars
Drill collars are widely used in:
- ? Oil & Gas Exploration Wells
- ? Geothermal and Deepwater Wells
- ? Borewell and Water Well Drilling
- ? Directional and Horizontal Drilling
- ? Mining Exploration
? Sample Technical Specifications
| Parameter | Specification |
|---|---|
| Material | AISI 4145H Modified, Non-Magnetic Steel |
| Outer Diameter | 3 1/8” to 9 ½” |
| Inner Diameter | 1 ½” to 3” |
| Thread Type | NC 38, NC 50, 6-5/8 REG, etc. |
| Length | 30 ft (standard) |
| Finish | Phosphated or Painted |
? Image Alt Tag
Image Alt Text: Spiral grooved drill collar for oilfield and borewell drilling
? Internal Linking
? Benefits of Using Drill Collars
- ?? Adds Necessary Weight on Bit (WOB)
- ?? Prevents Buckling of Drill Pipe
- ?? Improves Bit Control and Borehole Direction
- ?? Durable in High Pressure, High Temp (HPHT) Environments
- ?? Available in Custom Lengths & Material Grades
? How to Select the Right Drill Collar
- Well Depth and Bit Weight Requirements
- Type of Formation (Hard/Soft)
- Need for Directional Drilling or Vertical Hole
- Magnetic Interference Considerations
- Compatibility with Drill Pipe & Bit
? Call to Action (CTA)
Looking for API-certified drill collars for your oilfield or water well project?
?? Request a quote or speak to our technical sales team now.
